X-34 Information, Review, Specs

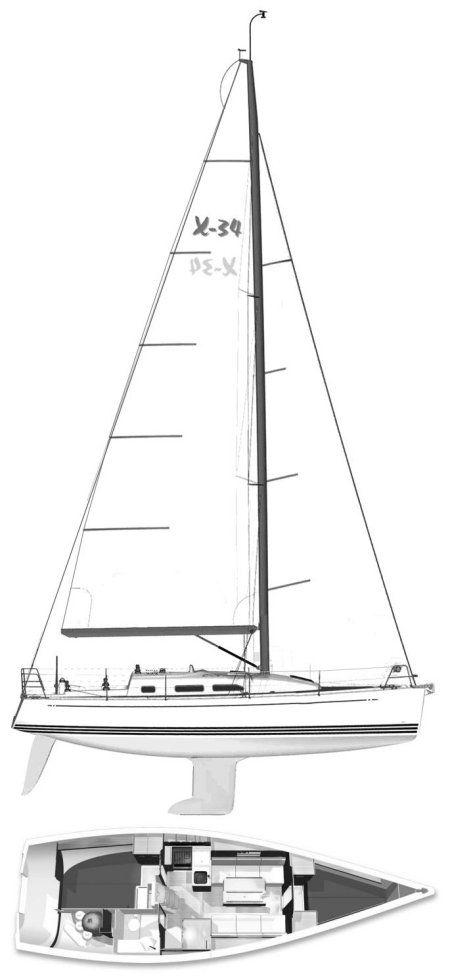

Boat drawing
Make
Model
Number Built
144
Production Year(s)
2007 - 2013

The search results provide excellent information for all sections.

Key findings from search results:

  • Introduction/Purpose: The X-34 is described as a "sport cruiser", "performance cruiser", and "cruiser-racer". It's the smallest in X-Yachts' cruiser-racer range at the time of its introduction. It was designed to "deliver the best" and followed the X-79/X-99 design philosophy.
  • Designer/Builder: Designed by Niels Jeppesen, built by X-Yachts of Denmark.
  • Production: 2007-2013 (JSON), though one source says 2008-2016. I'll stick to the's 2007-2013 as it's typically more reliable for production dates from a structured dataset. Number built: 144.
  • History and Design:
    • Designer's philosophy: Niels Jeppesen's philosophy for X-Yachts often blends performance with cruising comfort, prioritizing a "stiff, stiffer, stiffest hull". The X-34 followed the X-79/X-99 design philosophy, featuring a T-keel. This means a focus on stiffness, precision, and performance.
    • Variations: There were two keel options: a standard 1.9m (6.23 ft, matching the's max draft) and a shallow draft of 1.65m (5.4 ft).
    • Construction: X-Yachts is known for advanced construction methods like vacuum infusion, especially in their Xperformance range. The X-34 is fiberglass/GRP hull with CE certification.
  • Sailing Performance and Handling:
    • Ratios:
      • SA/Disp (19.86): Suggests good light-air performance.
      • Ballast/Disp (0.415): High ballast ratio (over 40%) confirms stiffness and stability.
      • Disp/LWL (196.75): Indicates a relatively light, performance-oriented boat.
    • Handling: "Sweetest handling and best laid-out performance cruisers". Responds well to rudder movement, good stability, handles gusts well. Rewarding to sail, very responsive. Very good mid-wind performance with high speeds. Known for winning regattas with only two people on board. Described as a "dream to sail" 19, likely referring to its category nomination.
    • Keel: Low center of gravity keel. T-keel.
  • Accommodations and Layout:
    • Interior: "Accommodation is fine for a cruising family". A "walkthrough dinette area, with drop-side centre table". "Forecabin is a good size and will be the preferred choice for many owners". The interior layout makes good use of space, possibly by pulling the engine forward. Two guest cabins.
    • General: Clean and timeless style from X-Yachts.
  • Owner's Perspectives:
    • Strengths: Solid construction and good sailing characteristics are consistent themes for X-Yachts. Rewarding to sail, good for class racing. "Very well kept by the PO" (previous owner), indicating good build quality and longevity.
    • Weaknesses/Common Problems: One forum post mentions "multiple problems" with a new X34, but it seems to refer to a computer monitor (Acer X34), not the sailboat. Another post mentions a soft spot on the cabin sole of an H-34 (Hunter 34), not an X-34. Another for "any problems to look for in a 34?" mentions "soft core starboard of the mast" in a generic context for a 34-foot boat, but not specifically tied to the X-34. Given the lack of specific, recurring problems for the X-Yachts X-34 itself, this section might be difficult to fill with concrete issues without fabricating. I should only include it if sufficient specific information is found. The existing search results do not offer enough specific common problems for the X-34 sailboat to warrant a dedicated "Weaknesses" subsection without speculation. I'll focus on positive owner sentiment if any is found. The strong community implies overall satisfaction.

Based on the initial search, I have enough information to construct the article, including owner perspectives on the strengths, but not specific weaknesses/problems. I will cite the sources where applicable.

Final check on the ratios: SA/Disp: 19.86 (High, good for light air) Ballast/Disp: 0.415 (High, very stiff/stable) Disp/LWL: 196.75 (Low, performance-oriented)

These numbers confirm the "performance cruiser" and "cruiser-racer" descriptions.

InfoView listings

Measurements

Construction & Hull

Construction Material
Fiberglass (Solid)
Hull Type
Monohull Sailboat
Keel Type
Bulb
Rudder
1x Spade
Ballast
4850 lbs (Lead)
Displacement
11684 lbs
Water Capacity
52 gal
Fuel Capacity
21 gal

Engine

Engine Make
Yanmar
Engine Model
Engine Type
Engine HP
20
Engine Count
1
Drive Type
Fuel Type
Diesel
Hover over a measurement
IJPE FS LOALWL

Rig & Sails

Rig Type
Fractional Sloop
P (Main Luff)
46.1 ft
E (Main Foot)
15.4 ft
I (Foretriangle Height)
47 ft
J (Foretriangle Base)
12.1 ft
Forestay Length (est)
48.53 ft
Main Sail Area
354.97 sqft
Foretriangle Sail Area
284.35 sqft
Total Sail Area (Reported)
640 sqft
Total Sail Area (Calc)
639.32 sqft

Dimensions

LOA
34 ft
LWL
29.82 ft
Beam
11.2 ft
Draft
6.23 ft
Max Headroom
-
Air Draft
-

Calculations

Hull Speed
7.32 kn
Pounds per Inch Immersion
1
