Waarschip 570 Information, Review, Specs

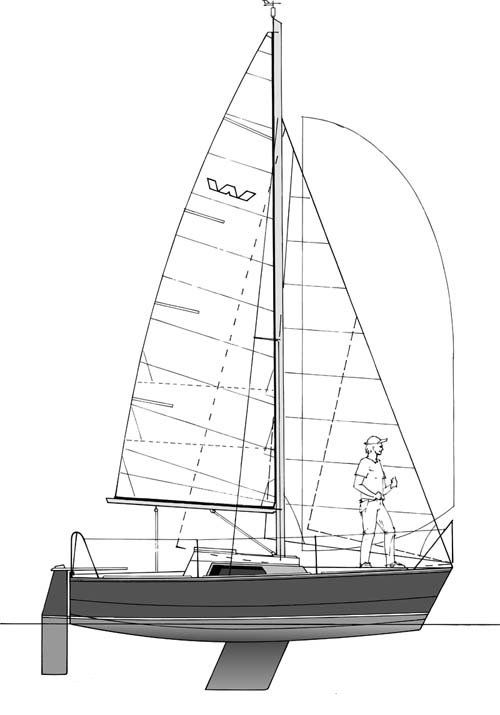

Boat drawing
Make
Waarschip
Model
570
Number Built
618
Production Year(s)
1976 - 1995

The Waarschip 570 is a distinctive and capable small cruising sailboat, embodying the Dutch builder Waarschip Werft's dedication to robust, performance-oriented wooden yachts. Designed by K.T. Kremer, this compact monohull quickly gained a reputation for its sophisticated yet cozy design and engaging sailing characteristics, making it a popular choice for day sailing and comfortable weekend cruising. Produced for nearly two decades, from 1976 to 1995, the Waarschip 570 appeals to sailors seeking a manageable vessel with surprising speed and stability, even in challenging conditions.

InfoView listings

History and Design

The Waarschip 570 emerged from a period when Waarschip Werft was a pioneering force in making boat ownership accessible, particularly through their kit offerings for home builders. While many of Waarschip's early models were sold as kits, the company also built fully finished yachts, ensuring high-quality standards. The 570, like other Waarschip models of its era, benefits from this manufacturing ethos, which emphasized durable construction capable of withstanding demanding conditions.

Its hull and deck are constructed from fiberglass-plywood core, a testament to Waarschip's refined wooden construction techniques, which often involved marine plywood coated with modern epoxy for enhanced longevity and resilience. This method blends traditional craftsmanship with contemporary materials for a robust structure. The design features a fin keel and a transom-hung rudder, contributing to its responsive handling. During its production run, the Waarschip 570 was offered in "Sport" and "Comfort" variants, with the Sport model being a more modern derivative known for its speed and exceptional manageability.

Sailing Performance and Handling

Despite its compact size, the Waarschip 570 is widely regarded as a spirited performer on the water. It is described as a fast and highly manageable boat, capable of performing well even in less favorable weather conditions. Sailors appreciate its inherent stability and responsive handling, which make for a confident and enjoyable experience. The boat features a fractional sloop rig, known for its ease of trimming and performance. Its large cockpit is a notable feature, designed to accommodate up to six people comfortably for both sporty sailing and relaxed cruising.

Accommodations and Layout

The Waarschip 570 is noted for having a well-designed and surprisingly spacious interior for a boat of its length. While full standing headroom throughout the entire cabin is not typically expected in a vessel under 20 feet, the layout is designed to maximize usable volume. Owners often praise the interior as "cozy" and "sophisticated," providing a comfortable space for overnight stays or sheltered relaxation. Details on the specific arrangement, such as the number of berths or presence of a dedicated galley or head compartment, would typically vary between individual boats, but generally, small cruisers of this size would offer a V-berth forward, a convertible dinette or settee berths in the main salon, and a simple galley area, sometimes with a porta-potty or a basic plumbed head.

Measurements

Construction & Hull

Construction Material
Fiberglass (Plywood Core)
Hull Type
Monohull Sailboat
Keel Type
Fin
Rudder
1x Transom-Hung
Ballast
606 lbs
Displacement
1653 lbs
Water Capacity
-
Fuel Capacity
-

Engine

Engine Make
Engine Model
Engine Type
Engine HP
Engine Count
1
Drive Type
Fuel Type
Hover over a measurement
IJPE FS LOALWL

Rig & Sails

Rig Type
Fractional Sloop
P (Main Luff)
26.58 ft
E (Main Foot)
8.2 ft
I (Foretriangle Height)
-
J (Foretriangle Base)
-
Forestay Length (est)
-
Main Sail Area
108.98 sqft
Foretriangle Sail Area
-
Total Sail Area (Reported)
252.95 sqft
Total Sail Area (Calc)
-

Dimensions

LOA
18.7 ft
LWL
16.4 ft
Beam
8.04 ft
Draft
3.28 ft
Max Headroom
-
Air Draft
29.85 ft

Calculations

Hull Speed
5.43 kn
Pounds per Inch Immersion
471.14
