Santana 25-2 Information, Review, Specs

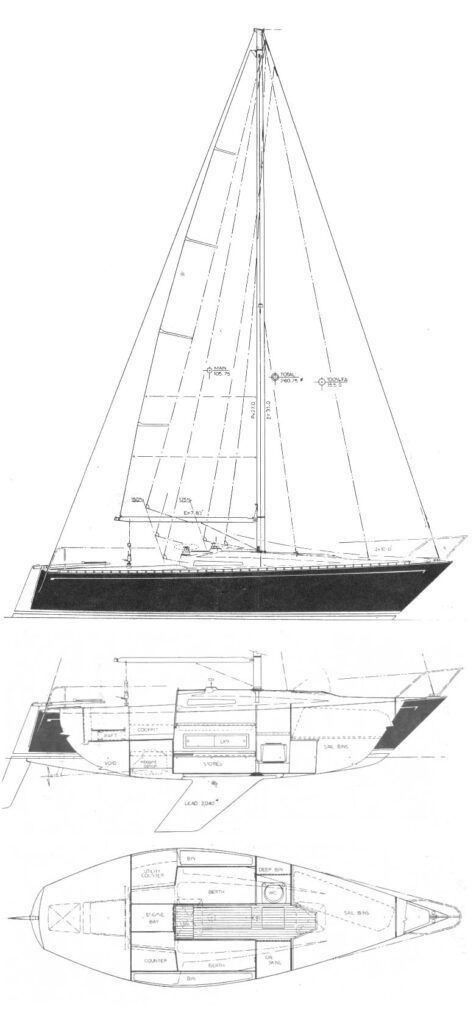

Boat drawing
Make
Model
Number Built
Production Year(s)
1973 - ??

The Santana 25-2 is a compact and performance-oriented monohull sailboat, designed by W. Shad Turner and built by the renowned W.D. Schock Corporation. Introduced in 1973, this model was conceived as an International Offshore Rule (IOR) Quarter Ton class racer, reflecting the design trends of its era that emphasized competitive sailing within specific rating rules. W.D. Schock, based on the West Coast, was known for producing quality fiberglass yachts, and the Santana 25-2 exemplifies their commitment to practical design, robust construction, and lively performance in a smaller package.

InfoView listings

The Santana 25-2 emerged from W.D. Schock's prolific Newport Beach, California, facilities, a company established in 1958 by William "Bill" D. Schock. W.D. Schock built a strong reputation for crafting accessible yet competitive sailing vessels, specializing in fiberglass construction from its inception. The Santana series, including the 25-2, further cemented the builder's standing in the racing and performance cruising segments. The 25-2 model, first built in 1973, distinguishes itself from the earlier Santana 25-1 primarily by an entirely new deck molding, indicating a significant revision in its production run. Designed to meet the specifications of the IOR Quarter Ton class, W. Shad Turner's design philosophy for the Santana 25-2 likely focused on achieving a balance of speed, handling, and adherence to the racing rule, aiming for a "speedy hull design."

Sailing Performance and Handling

The Santana 25-2, with a length overall of just under 24.6 feet and a waterline length of 19.5 feet, is designed for spirited sailing. With a displacement of 4,050 pounds, her displacement-to-length ratio of approximately 244 suggests a moderate weight class, positioning her as a nimble cruiser-racer rather than an ultralight or heavy displacement vessel. Her calculated hull speed is around 5.92 knots.

The boat's sail area to displacement ratio of about 16.45 indicates decent performance across a range of wind conditions, though she may not be a dedicated light-air specialist. However, her ballast-to-displacement ratio of 0.44, with 1,800 pounds of lead ballast, signifies good stiffness and stability, enabling her to stand up to more wind and maintain sail power effectively. Anecdotal evidence suggests the designer aimed for a "speedy hull design," and some vessels are still actively "setup as a racer," reflecting her performance capabilities.

Accommodations and Layout

The interior of the Santana 25-2 offers basic but functional accommodations for its size. The cabin is reported to include cushions and can sleep two adults in the salon area. Given its primary design as an IOR Quarter Ton racer, the interior would likely feature a compact layout optimized for racing essentials rather than extensive cruising amenities. Details on specific features like a dedicated galley, head compartment, or V-berth are not widely available in general specifications, suggesting a more open and spartan arrangement typical of racing-focused designs of the era.

Measurements

Construction & Hull

Construction Material
Fiberglass (Solid)
Hull Type
Monohull Sailboat
Keel Type
Fin
Rudder
1x Transom-Hung
Ballast
1800 lbs (Lead)
Displacement
4050 lbs
Water Capacity
-
Fuel Capacity
-

Engine

Engine Make
Engine Model
Engine Type
Engine HP
Engine Count
1
Drive Type
Fuel Type
Hover over a measurement
IJPE FS LOALWL

Rig & Sails

Rig Type
Masthead Sloop
P (Main Luff)
27 ft
E (Main Foot)
7.83 ft
I (Foretriangle Height)
31.16 ft
J (Foretriangle Base)
10 ft
Forestay Length (est)
32.73 ft
Main Sail Area
105.71 sqft
Foretriangle Sail Area
155.8 sqft
Total Sail Area (Reported)
262 sqft
Total Sail Area (Calc)
261.51 sqft

Dimensions

LOA
24.58 ft
LWL
19.5 ft
Beam
7.82 ft
Draft
4.08 ft
Max Headroom
-
Air Draft
-

Calculations

Hull Speed
5.92 kn
Pounds per Inch Immersion
544.86
