Tiger Cat Information, Review, Specs

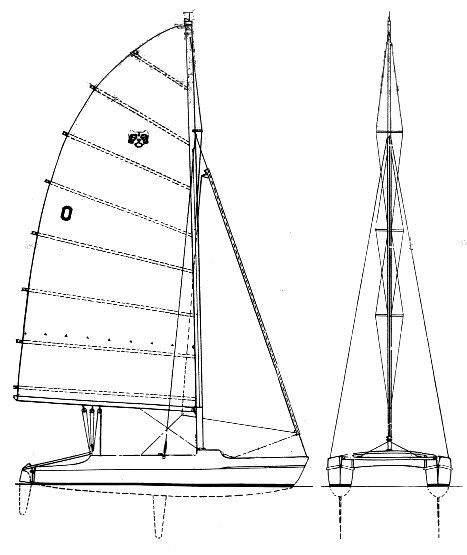

Boat drawing
Make
Model
Number Built
160
Production Year(s)
1960 - 1963

The Pearson Tiger Cat stands as a historically significant 17-foot catamaran, renowned as the first one-design catamaran class established in the United States. Built by the pioneering fiberglass boat manufacturer Pearson Yachts between 1960 and 1963, this ultralight sailboat quickly earned a reputation for its speed and competitive prowess, notably winning Yachting's prestigious One-of-a-Kind Regatta in 1959 with its prototype. Designed by William B. Harris, the Tiger Cat was conceived primarily as a high-performance day sailor and racer, setting a benchmark for future catamaran designs.

InfoView listings

The story of the Pearson Tiger Cat begins with a cold-molded wood prototype, also named "Tiger Cat," which achieved a significant victory in Yachting magazine's One-of-a-Kind Regatta in 1959. This success laid the groundwork for Pearson Yachts, a company already at the forefront of fiberglass boatbuilding, to introduce a production version. Founded by cousins Clinton and Everett Pearson, Pearson Yachts was a pioneer in adopting fiberglass as a primary material, revolutionizing boat construction with its innovative designs and robust build quality. The production Tiger Cat was built between 1960 and 1963, with approximately 160 units manufactured. Its creation solidified Pearson's commitment to diverse boat types, moving beyond traditional monohulls to embrace the burgeoning multihull market. The design ethos behind the Tiger Cat emphasized light weight and exceptional speed, reflecting the competitive spirit of its prototype.

Sailing Performance and Handling

As a 17-foot fractional sloop catamaran with a hull speed of 5.33 knots, the Pearson Tiger Cat is distinctly performance-oriented, designed for exhilarating speed and agile handling. Its ultralight displacement contributes significantly to its lively performance, particularly in light air conditions. The boat features a centerboard, allowing for variable draft between 3.08 feet and 6.17 feet, offering flexibility for both shallow water sailing and enhanced upwind performance when deployed. With two rudders, the Tiger Cat maintains responsive steering and maneuverability, a critical characteristic for a high-speed catamaran. Anecdotal evidence from its racing record, including winning six out of seven races in 1961, underscores its competitive capabilities and spirited nature on the water.

Accommodations and Layout

Given its design as a 17-foot racing and day sailing catamaran, the Pearson Tiger Cat's "accommodations" are focused on its open cockpit, providing space for crew during spirited sailing sessions. There are no enclosed living spaces, bunks, or traditional galley/head facilities typically found on larger cruising sailboats, as indicated by the absence of maximum headroom specifications. The layout prioritizes a functional deck and cockpit arrangement suitable for racing and recreational day use, allowing sailors to manage the sails and control the vessel effectively.

Measurements

Construction & Hull

Construction Material
Fiberglass (Solid)
Hull Type
Catamaran Sailboat
Keel Type
Centerboard
Ballast
-
Displacement
585 lbs
Water Capacity
-
Fuel Capacity
-

Engine

Engine Make
Engine Model
Engine Type
Engine HP
Engine Count
1
Drive Type
Fuel Type
Hover over a measurement
IJPE FS LOALWL

Rig & Sails

Rig Type
Fractional Sloop
P (Main Luff)
-
E (Main Foot)
-
I (Foretriangle Height)
-
J (Foretriangle Base)
-
Forestay Length (est)
-
Main Sail Area
-
Foretriangle Sail Area
-
Total Sail Area (Reported)
285 sqft
Total Sail Area (Calc)
-

Dimensions

LOA
17 ft
LWL
15.83 ft
Beam
7.95 ft
Draft
6.17 ft
Max Headroom
-
Air Draft
-

Calculations

Hull Speed
5.33 kn
Pounds per Inch Immersion
