Grumman Flyer Information, Review, Specs

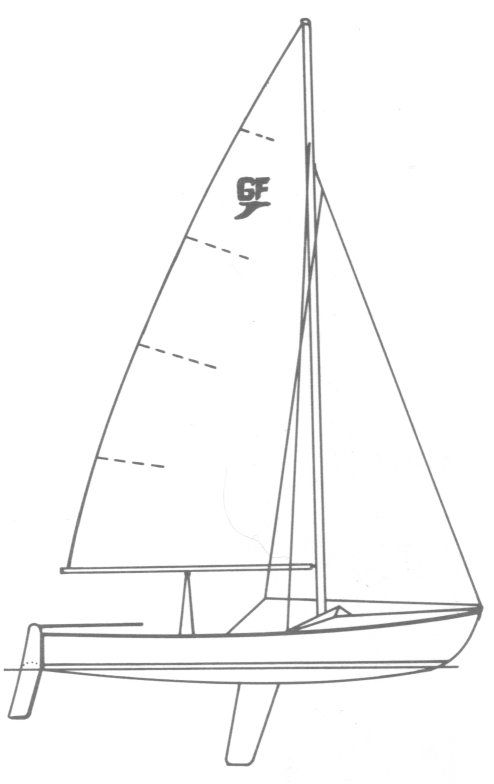

Boat drawing
Make
Model
Number Built
Production Year(s)
1968 - ??

The Grumman Flyer is a distinctive 16.16-foot fractional sloop, renowned as an ultralight and high-performing sailing dinghy. Designed by the notable American maritime architect William H. Shaw, this unique vessel was constructed from aluminum by Grumman Boats, a division of Grumman Aircraft, in collaboration with Pearson Yachts. It embodies a blend of robust aerospace-grade material application and spirited sailing characteristics, primarily intended for daysailing and recreational performance.

InfoView listings

Production of the Grumman Flyer commenced in 1968. The design by William H. Shaw reflects a philosophy aimed at creating an ultralight, high-performance dinghy. During this period, Grumman Allied Industries held a controlling interest in Pearson Yachts, and Grumman Boats, specializing in aluminum fabrication, combined its manufacturing expertise with Pearson's boatbuilding operations at a new plant in Portsmouth, Rhode Island. This partnership allowed for the construction of unique vessels like the Grumman Flyer, leveraging Grumman's proficiency in aluminum. No significant variations in the design or production run of the Grumman Flyer were found.

Sailing Performance and Handling

Given its compact size of just over 16 feet, traditional sailboat performance ratios like Sail Area to Displacement or Ballast to Displacement are less applicable and not used to describe the Grumman Flyer's characteristics. Instead, its performance is best understood through its specific design and material. With a reported sail area of 149 square feet and a remarkably light displacement of only 320 pounds, the Grumman Flyer is indeed an ultralight vessel designed for high performance. Its fractional sloop rig and centerboard keel type contribute to its maneuverability and responsiveness. Owners and reviewers often describe the Grumman Flyer as a very stable and stiff boat, capable of handling well in varying conditions. However, due to its ultralight nature, it's also noted for having a low righting capability if capsized, indicating a design geared towards an engaged and active sailing experience.

Accommodations and Layout

The Grumman Flyer, with a length overall of 16.16 feet and a beam of 6.67 feet, is fundamentally an open sailing dinghy. Its design prioritizes sailing performance and ease of handling over extensive interior accommodations. As such, detailed interior layouts or significant headroom are not features of this boat, nor is such information available in specifications. The primary space aboard is an open cockpit, suitable for daysailing and recreational activities, offering minimal or no provisions for overnight stays.

Measurements

Construction & Hull

Construction Material
Aluminum
Hull Type
Monohull Sailboat
Keel Type
Centerboard
Rudder
1x —
Ballast
-
Displacement
320 lbs
Water Capacity
-
Fuel Capacity
-

Engine

Engine Make
Engine Model
Engine Type
Engine HP
Engine Count
1
Drive Type
Fuel Type
Hover over a measurement
IJPE FS LOALWL

Rig & Sails

Rig Type
Fractional Sloop
P (Main Luff)
-
E (Main Foot)
-
I (Foretriangle Height)
-
J (Foretriangle Base)
-
Forestay Length (est)
-
Main Sail Area
-
Foretriangle Sail Area
-
Total Sail Area (Reported)
149 sqft
Total Sail Area (Calc)
-

Dimensions

LOA
16.16 ft
LWL
14.5 ft
Beam
6.67 ft
Draft
3.33 ft
Max Headroom
-
Air Draft
-

Calculations

Hull Speed
5.1 kn
Pounds per Inch Immersion
345.57
