Rhodes 19 Information, Review, Specs

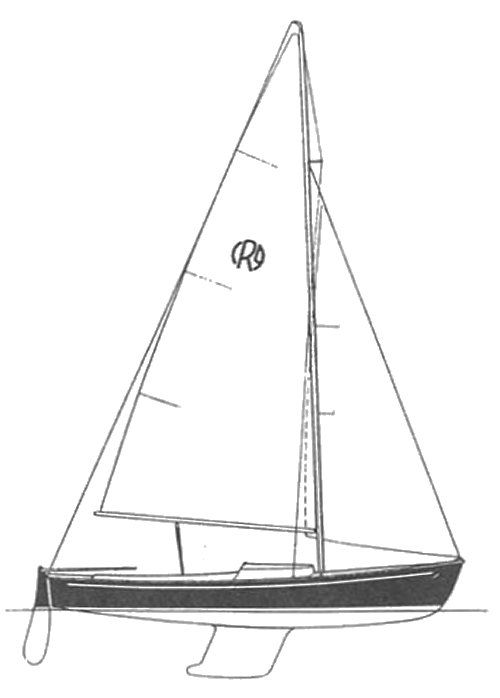

Boat drawing
Make
Rhodes
Model
19
Number Built
3200
Production Year(s)
1959 - ??

The additional search confirms that the Rhodes 19 features a "low-profile cuddy" rather than a full cabin. One owner mentions a "home-made sheet/halyard hammock beneath the cuddy cabin roof," which suggests the cuddy is primarily for storage or very minimal shelter, not living space. The Mariner 19, which uses the same hull, added cruising accommodations, further indicating the Rhodes 19 is a true day sailer with limited interior.

I now have enough information to construct the article.

InfoView listings

Measurements

Construction & Hull

Construction Material
Fiberglass (Solid)
Hull Type
Monohull Sailboat
Keel Type
Fin
Rudder
1x Transom-Hung
Ballast
415 lbs (Iron)
Displacement
1355 lbs
Water Capacity
-
Fuel Capacity
-

Engine

Engine Make
Engine Model
Engine Type
Engine HP
Engine Count
1
Drive Type
Fuel Type
Hover over a measurement
IJPE FS LOALWL

Rig & Sails

Rig Type
Fractional Sloop
P (Main Luff)
24 ft
E (Main Foot)
9.88 ft
I (Foretriangle Height)
15 ft
J (Foretriangle Base)
6.5 ft
Forestay Length (est)
16.35 ft
Main Sail Area
118.56 sqft
Foretriangle Sail Area
48.75 sqft
Total Sail Area (Reported)
175 sqft
Total Sail Area (Calc)
167.31 sqft

Dimensions

LOA
19.17 ft
LWL
17.75 ft
Beam
7 ft
Draft
3.25 ft
Max Headroom
-
Air Draft
-

Calculations

Hull Speed
5.65 kn
Pounds per Inch Immersion
443.96
