Swan 76 Information, Review, Specs

History and Design

The genesis of the Swan 76 emerged during a pivotal period for Nautor's Swan, as the company solidified its reputation for producing high-quality, high-performance sailing yachts. Launched in 1979, the Swan 76 was a significant undertaking, designed by Sparkman & Stephens as a dedicated racer-cruiser. The design ethos behind the Swan 76 was notably ambitious, drawing inspiration from the lines of the World Champion Maxi racer of the 1970s, Kialoa III. This connection hints at a design philosophy focused on speed and efficiency on the racecourse, translated into a production fiberglass yacht.

Sparkman & Stephens, known for their balanced designs and seaworthiness, aimed to deliver a yacht that was both exhilarating to sail and robust enough for serious offshore endeavors. During this period, Nautor's manufacturing ethos, as described by its founder Pekka Koskenkyla, centered on combining Finnish boat-building traditions with modern materials and design principles, prioritizing robust construction and spirited sailing capabilities. This fusion was evident in the solid fiberglass hull and deck construction of the Swan 76. No significant variations or marks (e.g., MkI vs. MkII) were noted during its limited production run of five hulls.

Sailing Performance and Handling

The Swan 76, with a length overall of just over 76 feet and a waterline length exceeding 61 feet, was conceived as a performance-oriented vessel for its size. Her displacement of 98,700 pounds, combined with a waterline length of 61.33 feet, results in a Displacement to Length ratio of approximately 191.16. This figure places her firmly in the category of lighter, more performance-oriented yachts for her size, suggesting a boat that is relatively easily driven and responsive.

The ketch rig, with a total calculated sail area of 2,061.61 square feet (or reported sail area of 2,449.0 square feet for a more inclusive figure) and a displacement of 98,700 pounds, yields a Sail Area to Displacement ratio of approximately 18.34 when using the reported sail area. This indicates a generous sail plan, suggesting that the Swan 76 is well-powered and capable of good performance in lighter air conditions. However, her ballast-to-displacement ratio of 0.243 (24,000 lbs ballast in 98,700 lbs displacement) is relatively low. This indicates that while the yacht possesses inherent stability, it relies more on its substantial hull form and broad beam of over 19 feet for initial stiffness and stability, rather than an exceptionally heavy keel alone.

The fin keel design of the Swan 76 contributes to splendid maneuverability, though it may offer slightly less directional stability than a full keel. Anecdotal evidence from owners of S&S-designed Swans often highlights their balanced handling and comfortable motion offshore, which aligns with the design's reputation for being "gentleman's yacht racing" capable while also providing a "great experience" for cruising. Her hull speed is calculated at approximately 10.49 knots, indicating her capacity for swift passages.

Accommodations and Layout

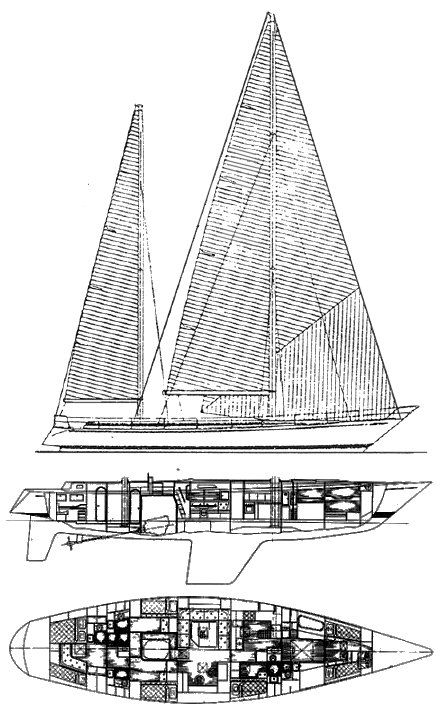

The interior of the Sparkman & Stephens designed Swan 76 was configured for luxurious long-distance cruising, often catering to owners who might also engage in club racing. While specific original layout diagrams are scarce, available information indicates a spacious arrangement typical of large, well-appointed yachts of its era. The layout, commencing forward, typically included two crew cabins, reflecting its size and the expectation of professional crew for larger vessels.

These yachts were built to accommodate a significant number of people, with some configurations noted to accommodate up to eight charter guests in four cabins, although this likely refers to refitted or later examples. Generally, interiors of Nautor's Swans from this period are characterized by high-quality joinery, often featuring extensive use of varnished teak or other fine woods, providing a warm and traditional marine ambiance. Emphasis would have been placed on comfortable living spaces, a well-equipped galley, and multiple heads, ensuring privacy and convenience for all on board. Ventilation and ample storage were also paramount for extended voyages.

Owner's Perspectives

Owners of the Sparkman & Stephens designed Swan 76 generally praise the enduring quality and sailing characteristics of these classic yachts. Many "are happy about sailing with a Sparkman & Stephens designed Swan," finding them capable and comfortable for offshore passages. The designation of "gentleman's yacht racing" suggests owners appreciate their ability to perform competitively while retaining cruising comforts.

However, as with any vessel of this vintage, ownership can present specific maintenance considerations. Owners have reported dealing with "structural issues" on older Swan 76s, including "some cracks at front and aft of keel" identified in pre-purchase surveys. These are not uncommon for boats that have seen decades of use and highlight the importance of thorough inspections and ongoing maintenance, though they do not detract from the fundamental sound design and construction. The passionate community surrounding S&S Swans often provides a valuable resource for addressing such challenges and maintaining these esteemed vessels.
