Roy 20 Information, Review, Specs

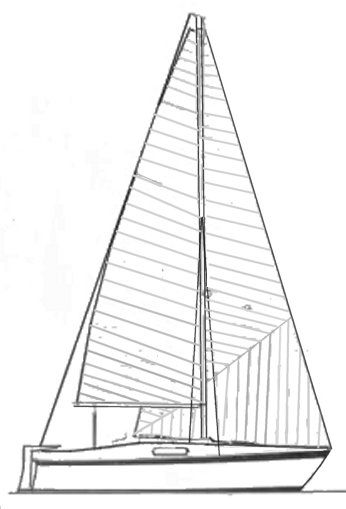

Boat drawing
Make
Model
Number Built
Production Year(s)
1978 - ??

The Roy 20 is a compact monohull sailboat, embodying the design philosophy of Roberto Róvere and the construction prowess of Nautivela Shipyard. Launched in 1978, this 20-foot vessel was part of Nautivela's acclaimed "ROY" series, designed to offer sailors a blend of speed, comfort, and safety in a smaller package. With its fin keel and masthead sloop rig, the Roy 20 was conceived as a nimble and accessible option for coastal cruising and day sailing, reflecting its Argentine builder's commitment to quality sailing pleasure.

InfoView listings

The Roy 20 began production in 1978, emerging from the Nautivela Shipyard, founded by Percy Sly in Argentina in 1970. The vessel was designed by Roberto Róvere, a key figure in the creation of Nautivela's distinctive "ROY" series. Nautivela's overarching design philosophy centered on building "fast, comfortable, and safe sailing yachts," a principle that was consistently applied across their models, including the Roy 20. This ethos aimed to cater to Argentine yachtsmen seeking spirited performance without compromising on livability and security. The shipyard operated until 1991, during which time it established itself as a leader in the South American marine industry.

Sailing Performance and Handling

Measuring 20.0 feet (6.10 m) in length overall and with a waterline length of 17.72 feet, the Roy 20 is characterized by its relatively light displacement of 1,984 pounds (900 kg). Equipped with a fin keel and a transom-hung rudder, it features a masthead sloop rig with a reported sail area of 154 square feet. These characteristics suggest a sailboat designed for responsive handling and good maneuverability, particularly well-suited for coastal waters. Its hull speed is calculated at approximately 5.64 knots, indicating its potential for enjoyable sailing in a variety of conditions. While specific anecdotal performance reviews for the Roy 20 are not extensively documented, its design points to a nimble boat, capable of providing an engaging sailing experience for its size.

Accommodations and Layout

Given its compact length of 20 feet, the Roy 20 offers basic yet functional accommodations, designed to provide essential comfort for weekend trips or short cruises. The interior boasts a maximum headroom of approximately 4.43 feet (1.35 m), which is notable for a vessel of this size, allowing some occupants to move with relative ease below deck. While detailed interior layouts are not readily available, typical arrangements for sailboats of this class usually include a forward V-berth for sleeping, a small central salon area with settees that may double as berths, and a rudimentary galley featuring a sink and perhaps a small stove. A compact head compartment, often without standing headroom, would also be a standard feature. The construction material for both the hull and deck is fiberglass, which points to a durable and relatively low-maintenance structure.

Measurements

Construction & Hull

Construction Material
Fiberglass (Solid)
Hull Type
Monohull Sailboat
Keel Type
Fin
Rudder
1x Transom-Hung
Ballast
-
Displacement
1984 lbs
Water Capacity
-
Fuel Capacity
-

Engine

Engine Make
Engine Model
Engine Type
Engine HP
Engine Count
1
Drive Type
Fuel Type
Hover over a measurement
IJPE FS LOALWL

Rig & Sails

Rig Type
Masthead Sloop
P (Main Luff)
-
E (Main Foot)
-
I (Foretriangle Height)
-
J (Foretriangle Base)
-
Forestay Length (est)
-
Main Sail Area
-
Foretriangle Sail Area
-
Total Sail Area (Reported)
154 sqft
Total Sail Area (Calc)
-

Dimensions

LOA
20 ft
LWL
17.72 ft
Beam
7.22 ft
Draft
3.44 ft
Max Headroom
-
Air Draft
-

Calculations

Hull Speed
5.64 kn
Pounds per Inch Immersion
457.14
