Moody 422 Information, Review, Specs

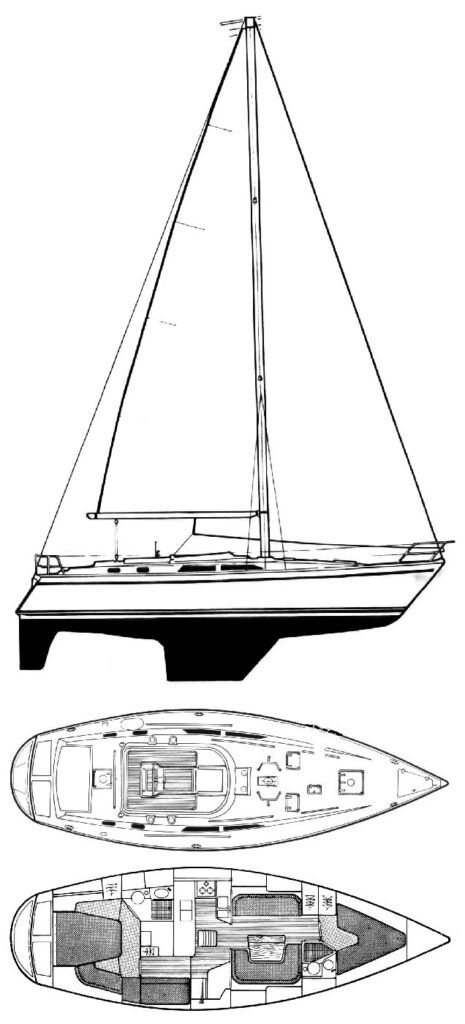

Boat drawing
Make
Moody
Model
422
Number Built
Production Year(s)
1986 - ??

The search results provide a good amount of information. I can now proceed with generating the article, incorporating the findings.

Key findings from search results:

  • Designer: Bill Dixon (confirmed).
  • Builder: Moody Yachts (A. H. Moody & Sons), specifically Marine Projects Ltd. in Plymouth for the 422.
  • Production Years: 1986-1988 (though some sources mention 1988 for a specific boat). The has production_start_year: 1986. production_end_year: null. Search result states "Introduced: September 1986. Ceased: June 1988." This confirms the production run.
  • Design Philosophy (Bill Dixon): Known for volume, comfort, and sailing performance in his Moody designs; reliable bluewater cruisers, 9]. "Exceptional engineering, quality above everything else".
  • Variations: Shoal draft and keel/CB (centerboard) versions mentioned.
  • Sailing Performance: "Well-built and well-equipped boat that can handle any sea conditions with ease". "A Sail Area/Displacement Ratio of 16.5 suggests that the Moody 422 will, in the right conditions, perform well". Owners mention easy single-handed sailing, handling up to force 5 or 6 with reefed genoa. Known for strong offshore performance.
  • Accommodations: "Spacious and well-designed accommodation layout". "Spacious and comfortable interior". Center-cockpit design allows for generous aft cabin. Typical layout includes saloon with U-shaped settee, lateral couch, two heads/showers, and oak joinery. Aft cabin layout is a key difference from the later 425.
  • Owner's Perspectives / Common Issues:
    • Strengths: Solid construction, comfortable motion, seaworthiness, spacious accommodations, capable of long-distance cruising 1, 12, builder article.
    • Weaknesses/Issues: Common issue for Moodys of this era: sealant under deck fittings (e.g., chainplates) dries out and cracks, requiring re-bedding.
    • General: Owners praise the build quality and ability to handle various sea conditions. "Another one of Moody's classic popular" models.

Now I have enough information to construct the article.

InfoView listings

Measurements

Construction & Hull

Construction Material
Fiberglass (Solid)
Hull Type
Monohull Sailboat
Keel Type
Fin
Rudder
1x Skeg-Hung
Ballast
8400 lbs
Displacement
21000 lbs
Water Capacity
110 gal
Fuel Capacity
70 gal

Engine

Engine Make
Thornycroft
Engine Model
Engine Type
Engine HP
50
Engine Count
1
Drive Type
Fuel Type
Diesel
Hover over a measurement
IJPE FS LOALWL

Rig & Sails

Rig Type
Masthead Sloop
P (Main Luff)
45.67 ft
E (Main Foot)
15.5 ft
I (Foretriangle Height)
51.67 ft
J (Foretriangle Base)
16.5 ft
Forestay Length (est)
54.24 ft
Main Sail Area
353.94 sqft
Foretriangle Sail Area
426.28 sqft
Total Sail Area (Reported)
780 sqft
Total Sail Area (Calc)
780.22 sqft

Dimensions

LOA
40.67 ft
LWL
34.16 ft
Beam
13.25 ft
Draft
5.75 ft
Max Headroom
-
Air Draft
-

Calculations

Hull Speed
7.83 kn
Pounds per Inch Immersion
1
