Windrose 24 Information, Review, Specs

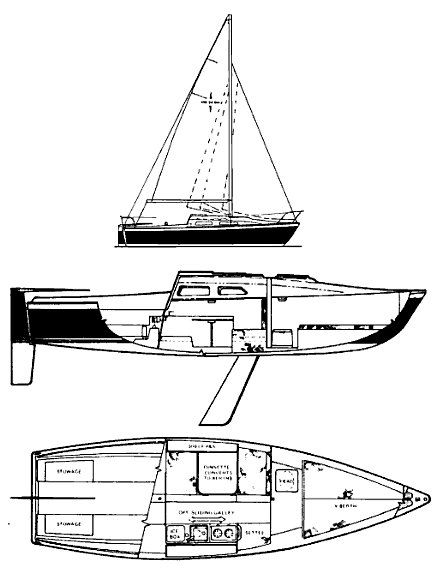

Boat drawing
Make
Model
Number Built
Production Year(s)
1974 - 1983

The Windrose 24 is a distinctive American trailerable sailboat, designed by the prolific naval architect W. Shad Turner and built by Laguna Yachts from 1974 to 1983. Envisioned as an accessible and functional cruiser, this 24-foot monohull became a popular choice for sailors seeking a versatile vessel capable of navigating both coastal and inland waterways. Known for its solid construction and a design philosophy centered on ease of handling, the Windrose 24 embodies the builder's commitment to providing practical sailboats for family cruising and daysailing. 2, 14, Builder Article

InfoView listings

The Windrose 24 began its production run in 1974, emerging from the California-based Laguna Yachts, a company founded by Bill Downing in 1973. 2, 3, Builder Article W. Shad Turner, a key figure in Laguna Yachts' design lineage, conceived the Windrose 24 as a dedicated cruiser. During this era, Laguna Yachts, and later its successor Classic Yachts, established a reputation for producing practical and accessible fiberglass sailboats with an emphasis on comfort and straightforward construction, rather than high-performance racing or luxury. The Windrose 24's design reflects this ethos, characterized by stability and ease of handling, features that defined many of Turner's creations for the brand. A notable design feature of the Windrose 24 is its swing keel, a pivoting lifting keel that significantly reduces its draft from a maximum of 5.08 feet to a minimum of 1.5 feet, enabling the boat to access shallow waters and be easily trailered. This adaptability was a core aspect of its appeal, allowing for a broader range of sailing opportunities.

Sailing Performance and Handling

As a fractional sloop with a length overall of 24 feet, the Windrose 24 is designed for comfortable cruising. Its dimensions, including a waterline length of 21.42 feet and a beam of 7.82 feet, contribute to a stable platform on the water. The boat's design, typical of W. Shad Turner's work for Laguna Yachts, prioritized stability and ease of handling, making it a forgiving vessel for a wide range of sailors. The swing keel is a defining characteristic, offering exceptional versatility; it allows sailors to explore shallow anchorages and makes launching and retrieving the boat straightforward for trailering. With a displacement of 2,400 pounds, the Windrose 24 offers a solid feel for its size, maintaining a steady motion in various sea states, consistent with its role as a capable light cruiser. Its calculated hull speed of 6.2 knots indicates a respectable pace for its class.

Accommodations and Layout

Information regarding the specific interior layout of the Windrose 24 is not extensively documented in public records. However, as a 24-foot cruiser designed in the 1970s, it would typically feature a compact but functional interior. Such vessels generally include basic provisions for overnighting, likely comprising a V-berth forward, a small convertible dinette or settee in the main cabin, and possibly a quarter berth. A basic galley area, often equipped with a sink and space for a portable stove, and a simple head compartment would also be common features, albeit modest in scale. Given Laguna Yachts' focus on practical and accessible fiberglass sailboats, the interior finish would likely be robust and simple, prioritizing durability and ease of maintenance over luxurious appointments.

Owner's Perspectives

Owners of the Windrose 24 frequently praise its solid construction and suitability as an affordable entry point into sailboat ownership. Many appreciate its basic, no-frills design, which aligns with its original intent as a straightforward 1970s cruiser. The swing keel, while a significant advantage for shallow water access and trailering, has been noted by some owners as a component requiring attention, particularly regarding the retracting keel pin. The enduring presence of these boats, along with active owner communities online, testifies to their lasting utility and the value placed on their classic fiberglass construction and simple systems. These communities serve as valuable resources for maintenance advice, parts, and shared experiences, highlighting the Windrose 24's continued appeal to weekend cruisers and those looking to maintain a piece of sailing history.

Measurements

Construction & Hull

Construction Material
Fiberglass (Solid)
Hull Type
Monohull Sailboat
Keel Type
Wing
Rudder
1x —
Ballast
700 lbs
Displacement
2400 lbs
Water Capacity
-
Fuel Capacity
-

Engine

Engine Make
Engine Model
Engine Type
Engine HP
Engine Count
1
Drive Type
Fuel Type
Hover over a measurement
IJPE FS LOALWL

Rig & Sails

Rig Type
Fractional Sloop
P (Main Luff)
25 ft
E (Main Foot)
10.25 ft
I (Foretriangle Height)
22 ft
J (Foretriangle Base)
8.75 ft
Forestay Length (est)
23.68 ft
Main Sail Area
128.13 sqft
Foretriangle Sail Area
96.25 sqft
Total Sail Area (Reported)
222 sqft
Total Sail Area (Calc)
224.38 sqft

Dimensions

LOA
24 ft
LWL
21.42 ft
Beam
7.82 ft
Draft
5.08 ft
Max Headroom
-
Air Draft
-

Calculations

Hull Speed
6.2 kn
Pounds per Inch Immersion
598.51
