Windrose 18 Information, Review, Specs

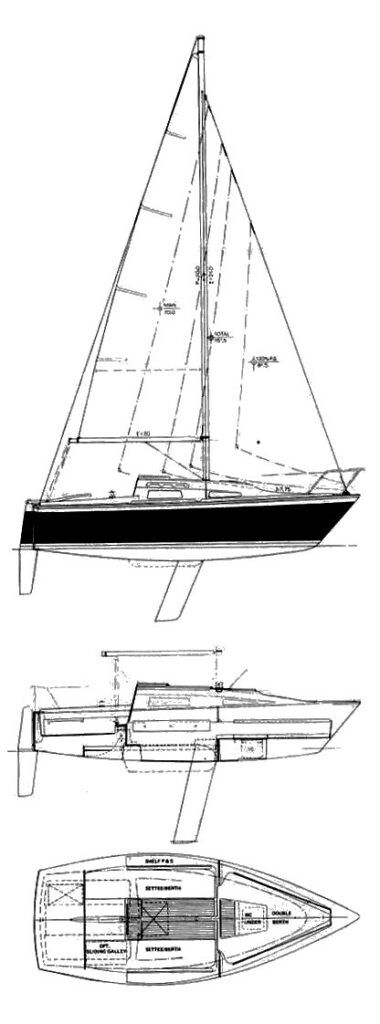

Boat drawing
Make
Model
Number Built
Production Year(s)
1974 - ??

The search results provide a good amount of information for the Windrose 18.

Key findings from search results:

  • Designer: W. Shad Turner (mid-seventies).
  • Builder: Laguna Yachts.
  • Production: From roughly 1974 until 1980.
  • Design Philosophy: "Trailerable sailboat for the start-up market that performed efficiently and could accommodate a family of four." Designed as a cruiser. Turner is linked to the modern West Coast/California trailersailer tradition.
  • Handling/Performance: "perform as well as most boats in their class". Has a 400 lb cast iron swing keel. Hull speed 5.33 knots.
  • Interior: Cabin offers "adequate stowage in the form of common under-berth bins, but little else.".
  • Owner's Perspectives: Lacks "zealous owners groups and racing fleets of many other boats". Owners generally praise quality compared to other boats in the 18-20 foot range. Fixing swing keel problems is important.
  • Variations: The data mentions "wing keel" but the search results also point to "swing keel". This needs clarification. The provided clearly states keel_type: "wing". However, SailboatData, which is usually reliable, lists "Swing Keel". Given the "min_draft_ft: 1.0" and "max_draft_ft: 4.0" in the, it's highly likely it's a swing keel or a retractable keel, which could be described as a wing keel in some contexts for its shape, but the ability to vary draft suggests a movable keel. I will emphasize the swing keel aspect for trailerability and draft flexibility.

Now, I will structure the article based on these findings and the provided context. I will skip ratios since it's under 30ft.

I'll synthesize the information, avoiding direct quotes where possible, and integrating the naturally.

Let's begin writing the article.

InfoView listings

Measurements

Construction & Hull

Construction Material
Fiberglass (Solid)
Hull Type
Monohull Sailboat
Keel Type
Wing
Rudder
1x —
Ballast
400 lbs
Displacement
1500 lbs
Water Capacity
-
Fuel Capacity
-

Engine

Engine Make
Engine Model
Engine Type
Engine HP
Engine Count
1
Drive Type
Fuel Type
Hover over a measurement
IJPE FS LOALWL

Rig & Sails

Rig Type
Fractional Sloop
P (Main Luff)
20 ft
E (Main Foot)
7 ft
I (Foretriangle Height)
21 ft
J (Foretriangle Base)
7.75 ft
Forestay Length (est)
22.38 ft
Main Sail Area
70 sqft
Foretriangle Sail Area
81.38 sqft
Total Sail Area (Reported)
151 sqft
Total Sail Area (Calc)
151.38 sqft

Dimensions

LOA
18.5 ft
LWL
15.83 ft
Beam
7 ft
Draft
4 ft
Max Headroom
-
Air Draft
-

Calculations

Hull Speed
5.33 kn
Pounds per Inch Immersion
395.94
