The Laguna 24 ST is a versatile sailboat designed as a capable compact cruiser, well-suited for coastal voyages and extended daysailing. Introduced in 1984 by Laguna Yachts, an American builder known for producing practical and accessible fiberglass vessels, the 24 ST embodies the company's philosophy of creating comfortable family-oriented sailboats. Designed by the prolific naval architect W. Shad Turner, this model is a variant of the earlier Laguna 24S, distinguished primarily by its taller masthead rig, offering enhanced sail-carrying ability.
Laguna 24 ST Information, Review, Specs
- Make
- Model
- Number Built
- Production Year(s)
- 1984 - ??
History and Design
The Laguna 24 ST commenced production in 1984 under the Laguna Yachts brand. Laguna Yachts, founded by Bill Downing in 1973, focused on fiberglass sailboats that prioritized functionality and ease of use over high-performance racing aspirations. The company's tenure saw a succession of designs, many of which were the work of W. Shad Turner. Turner's design ethos, evident across the Laguna and earlier Windrose lines, emphasized stability and straightforward handling, aiming to appeal to a wide range of sailors.
The 24 ST's immediate predecessor, the Laguna 24S, was first built in 1980, with Turner also at its helm. The core design of the 24-foot hull remained consistent, but the "ST" variant adopted a taller masthead rig, a notable modification that allowed for a larger total sail area of approximately 250 square feet. Laguna Yachts' production under its original name concluded around 1986, suggesting a relatively short run for the 24 ST, though many of these designs later continued under the "Classic" brand by Classic Yachts Inc..
Sailing Performance and Handling
With a length overall of just under 24 feet and a waterline length of 20 feet, the Laguna 24 ST is designed to offer nimble performance in a compact package. Its displacement of 2,800 pounds and 1,100 pounds of ballast, combined with a fin keel and transom-hung rudder, contribute to a stable and predictable sailing experience. The taller masthead rig provides a generous sail plan, suggesting good performance in lighter winds, while the ballast ratio contributes to its ability to stand up to a breeze. W. Shad Turner's designs, including those for the Laguna line, were generally known for their stability and ease of handling, characteristics likely inherited by the 24 ST. Its shallow maximum draft of 2.92 feet also makes it suitable for exploring shallower anchorages and coastal waters.
Accommodations and Layout
Information regarding the specific interior layout and finishes of the Laguna 24 ST is limited in readily available documentation. However, given its design as a compact cruiser and its length, the interior would typically feature a functional, open-plan arrangement common to sailboats of this size from the 1980s. Such a layout would generally include a forward V-berth for sleeping, a small salon area with bench seating, and likely a basic galley area with provisions for cooking and storage. Headroom, while not explicitly documented for the 24 ST, would be characteristic of a vessel of its era and dimensions, offering comfortable, if not standing, space in key areas for its primary purpose as a weekender or coastal cruiser.
Measurements
Construction & Hull
- Construction Material
- Fiberglass (Solid)
- Hull Type
- Monohull Sailboat
- Keel Type
- Fin
- Rudder
- 1x Transom-Hung
- Ballast
- 1100 lbs
- Displacement
- 2800 lbs
- Water Capacity
- -
- Fuel Capacity
- -
Engine
- Engine Make
- —
- Engine Model
- —
- Engine Type
- —
- Engine HP
- —
- Engine Count
- 1
- Drive Type
- —
- Fuel Type
- —

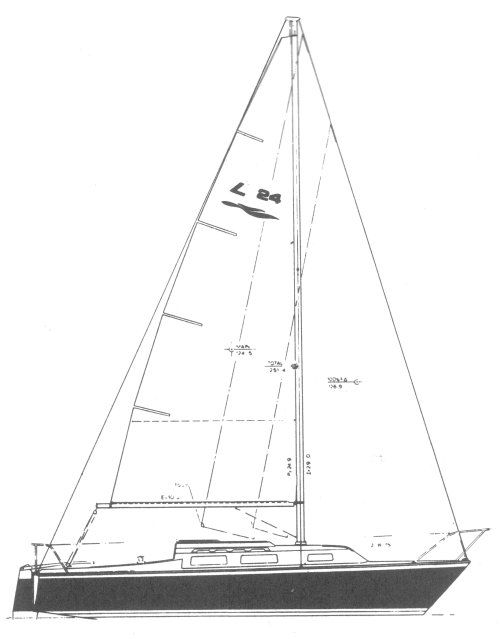

Rig & Sails
- Rig Type
- Masthead Sloop
- P (Main Luff)
- 24.6 ft
- E (Main Foot)
- 10 ft
- I (Foretriangle Height)
- 29 ft
- J (Foretriangle Base)
- 8.75 ft
- Forestay Length (est)
- 30.29 ft
- Main Sail Area
- 123 sqft
- Foretriangle Sail Area
- 126.88 sqft
- Total Sail Area (Reported)
- 251 sqft
- Total Sail Area (Calc)
- 249.88 sqft
Dimensions
- LOA
- 23.58 ft
- LWL
- 20 ft
- Beam
- 8.33 ft
- Draft
- 2.92 ft
- Max Headroom
- -
- Air Draft
- -
Calculations
- Hull Speed
- 5.99 kn
- Pounds per Inch Immersion
- 595.28
