Cap Horn Information, Review, Specs

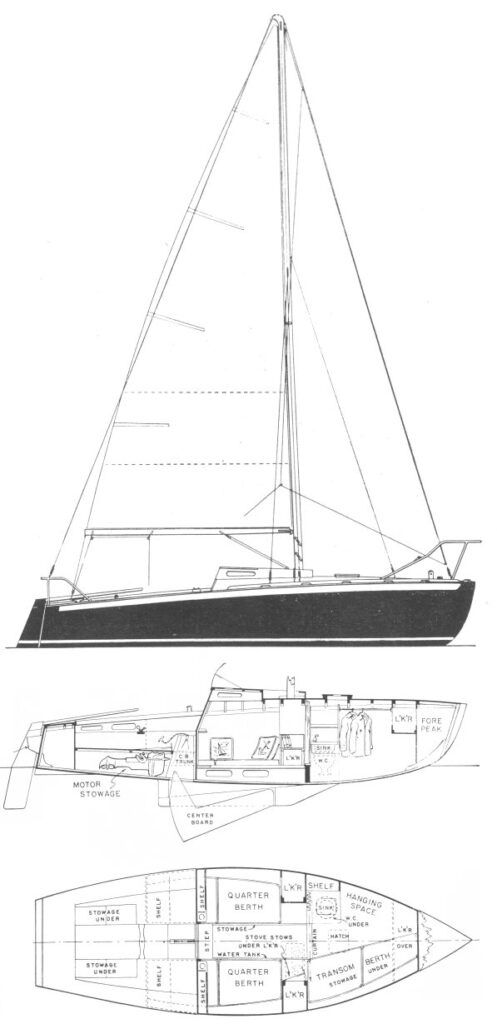

Boat drawing
Make
Model
Number Built
Production Year(s)
1959 - ??

The Jouët Cap Horn, a compact and historically significant sailboat, emerged from the esteemed French builder Jouët in 1959. Designed by the renowned naval architect Jean-Jacques Herbulot, this 21-foot monohull was conceived as a simple yet sophisticated low-cost weekend family cruiser, aiming to democratize the pleasure of sailing. Despite its modest size, the Cap Horn gained considerable recognition when one of its kind, sailed by Jean Lacombe, notably participated in the inaugural single-handed transatlantic race (OSTAR) in 1960, completing the challenging voyage in approximately 74 to 76 days.

InfoView listings

The creation of the Cap Horn in 1959 marked Jouët's commitment to crafting seaworthy and well-designed vessels, a philosophy deeply rooted in the company's early years when its craftsmanship was primarily in traditional wooden designs. The Cap Horn, with its wooden hull and deck, exemplifies this era of Jouët's production. Jean-Jacques Herbulot's design philosophy for the Cap Horn focused on delivering a simple yet surprisingly sophisticated small cruising boat, distinguishing it from other basic models popular in France during the 1950s. The remarkable feat of a Cap Horn completing the 1960 OSTAR race underscored the boat's inherent seaworthiness and robust construction, a testament to both Herbulot's design and Jouët's building quality. While Jouët later transitioned to fiberglass construction, the Cap Horn remains a representative model of their earlier wooden boat building heritage.

Sailing Performance and Handling

Given its length overall of 21.33 feet and a waterline length of 19.67 feet, the Jouët Cap Horn is designed as a small, manageable cruiser. Its hull speed is estimated at 5.94 knots. A notable design feature is its centerboard keel, allowing for a versatile draft ranging from a shallow 2.16 feet to a maximum of 5.2 feet. This centerboard configuration enhances its adaptability for exploring shallow anchorages while still providing stability and upwind performance when deployed. The historical participation of a Cap Horn in the challenging OSTAR race further speaks to its surprising offshore capabilities and robust handling characteristics for a boat of its size.

Accommodations and Layout

Due to its compact size, the interior accommodations of the Jouët Cap Horn are designed for efficient use of space, primarily catering to weekend cruising. Typical layouts for small cruisers of this era often prioritize sleeping berths and basic amenities. One standard configuration suggests the presence of a single cabin with sleeping capacity for up to four individuals, though it typically does not include a dedicated toilet compartment. Information regarding specific headroom or the finish quality and materials beyond its wooden construction is not extensively detailed in general reviews, but boats of this period from reputable builders like Jouët often featured functional, durable interiors.

Measurements

Construction & Hull

Construction Material
Wood
Hull Type
Monohull Sailboat
Keel Type
Centerboard
Rudder
1x —
Ballast
880 lbs
Displacement
2000 lbs
Water Capacity
10 gal
Fuel Capacity
-

Engine

Engine Make
Engine Model
Engine Type
Engine HP
Engine Count
1
Drive Type
Fuel Type
Hover over a measurement
IJPE FS LOALWL

Rig & Sails

Rig Type
Masthead Sloop
P (Main Luff)
-
E (Main Foot)
-
I (Foretriangle Height)
-
J (Foretriangle Base)
-
Forestay Length (est)
-
Main Sail Area
-
Foretriangle Sail Area
-
Total Sail Area (Reported)
240 sqft
Total Sail Area (Calc)
-

Dimensions

LOA
21.33 ft
LWL
19.67 ft
Beam
7.08 ft
Draft
5.2 ft
Max Headroom
-
Air Draft
-

Calculations

Hull Speed
5.94 kn
Pounds per Inch Immersion
497.6
