Irwin 25 Information, Review, Specs

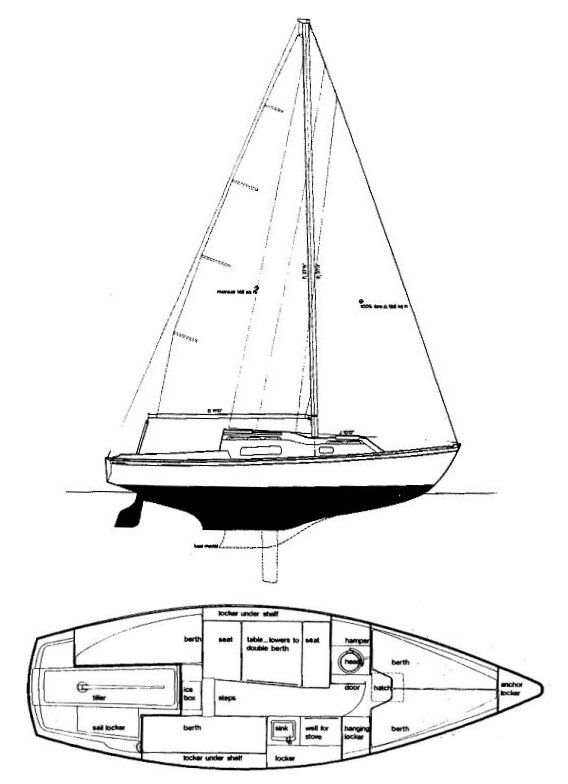

Boat drawing
Make
Irwin
Model
25
Number Built
Production Year(s)
1969 - 1976

The search results provide a good amount of information, especially from sailboat owner forums and sailboat data sites. I can construct the article based on these.

Here's a breakdown of how the search results will be used:

  • Introduction:
    • Irwin 25 designed by Ted Irwin, built by Irwin Yachts from 1969-1976.
    • Described as a "trailerable sailboat" and "cruiser".
    • "coastal pocket yacht".
  • History and Design:
    • Production years: 1969-1976.
    • Designer: Ted Irwin.
    • Builder's ethos: Fiberglass construction, reputation for practical and livable boats (from builder article). Ted Irwin's diverse philosophy, including smaller boats.
    • Variations: Explicitly mentioned is a fixed keel model in addition to the centerboard model. The fixed keel model has a draft of 4.0' and ballast of 1,825 lbs, compared to the centerboard's min/max draft of 2.67'/6.67' and 2200 lbs ballast [2,. Some forum posts mention "Irwin 10/4" which seems to be a wider version (10 ft beam vs 8 ft) but the core and common references are to the 8 ft beam Irwin 25, so I will focus on the main 25 and note the 10/4 if it's significant, though the user context is specifically about the "Irwin 25". Given the instruction is about the "Irwin 25", I'll stick to the provided's 8ft beam, but acknowledge the fixed keel variation.
  • Sailing Performance and Handling:
    • The prompt explicitly states not to use ratios for boats under 30 feet, so I will focus on qualitative descriptions.
    • Hull type: Keel/CB & spade rudder (centerboard version).
    • Anecdotal descriptions: One owner mentions sailing with the centerboard up and only losing pointing ability, implying good stability otherwise. Another implies it's a "true keel/center boarder, typical of the racing designs Irwin and Hinterholler were known for". The 10/4 (wider) version is mentioned as more stable initially but with trailering problems, which suggests the standard 25 might be less initially stable but easier to trailer.
    • Common issue: Centerboards and pendants on the centerboard versions can be a weakness or problem.
  • Accommodations and Layout:
    • Max headroom: 5.75 ft / 1.75 m.
    • Water capacity: 14 gals / 53 L.
    • Interior layout: Heavily rely on search results. Forum posts show modified interiors. General descriptions imply a basic interior suitable for a "coastal pocket yacht". The "blank fiberglass face on the front of the cabin above the V berth" is mentioned, suggesting a simple, unadorned interior. Forum discussions about modifications suggest owners often customize and improve the basic layout.
  • Owner's Perspectives (Optional):
    • Owners discuss issues with centerboards.
    • General sentiment suggests they are good for projects and accessible price points (from builder article).
    • "details that reflect cost savings" but "Practical Sailor" gives good reviews.
    • "solidarity" among owners suggests a supportive community for addressing issues.

I have enough information from the searches and the provided context to construct the article following the instructions. I will make sure not to list raw data and to interpret information qualitatively.

InfoView listings

Measurements

Construction & Hull

Construction Material
Fiberglass (Solid)
Hull Type
Monohull Sailboat
Keel Type
Centerboard
Rudder
1x Spade
Ballast
2200 lbs (Lead)
Displacement
5400 lbs
Water Capacity
14 gal
Fuel Capacity
-

Engine

Engine Make
Engine Model
Engine Type
Engine HP
Engine Count
1
Drive Type
Fuel Type
Hover over a measurement
IJPE FS LOALWL

Rig & Sails

Rig Type
Masthead Sloop
P (Main Luff)
29.5 ft
E (Main Foot)
11 ft
I (Foretriangle Height)
31.25 ft
J (Foretriangle Base)
10 ft
Forestay Length (est)
32.81 ft
Main Sail Area
162.25 sqft
Foretriangle Sail Area
156.25 sqft
Total Sail Area (Reported)
315 sqft
Total Sail Area (Calc)
318.5 sqft

Dimensions

LOA
25.42 ft
LWL
20.5 ft
Beam
8 ft
Draft
6.67 ft
Max Headroom
5.75 ft
Air Draft
34.33 ft

Calculations

Hull Speed
6.07 kn
Pounds per Inch Immersion
585.99
