North Star 1500/35 Information, Review, Specs

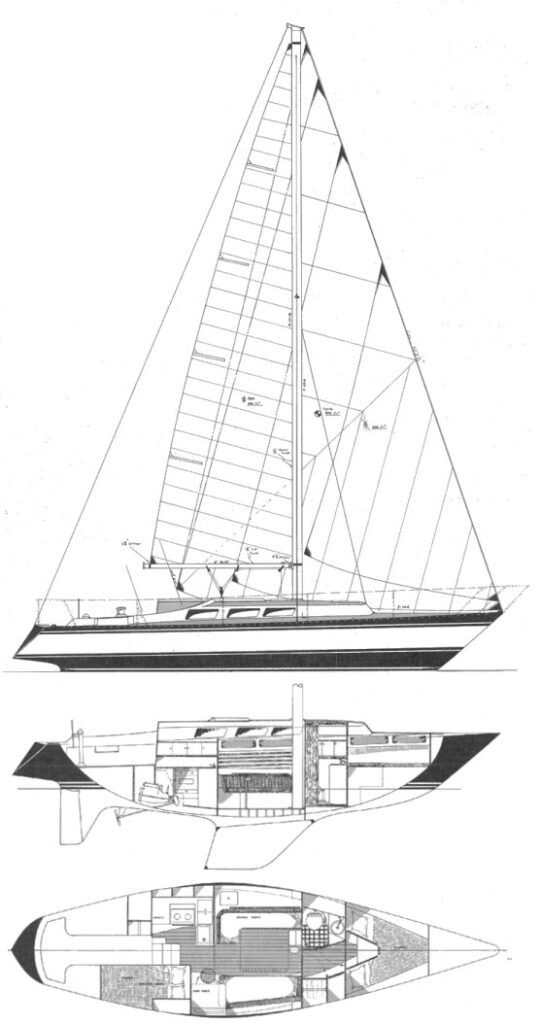

Boat drawing
Make
Model
Number Built
Production Year(s)
1974 - ??

The search results provide a good amount of information. I can confirm:

  • Designer: Sparkman & Stephens (design #2166)
  • Builder: Northstar Yachts, later Hughes Boat Works (as Hughes 35), and Aura A35, and SHE 36 (by South Hants Engineering).
  • Production start year: 1974 or 1975. Wikipedia says 1977 for Hughes 35. The states 1974. I will use the's 1974 for North Star 1500/35, and mention its later rebranding in 1977.
  • Purpose: Cruiser-racer, built for serious cruising, offering stability.
  • Variations: Shoal draft and tall rig versions mentioned in the, confirmed by a general understanding of boat production. Two different interior layouts are also mentioned for the Hughes 35.
  • Sailing characteristics: Described as stable, with good interior space and standing headroom. Owners praise solid construction and comfortable motion.
  • Interior: Two layouts mentioned, good standing headroom (6.33ft from, confirmed by search). Some mention of wood flooring and specific equipment like a Dickenson diesel fireplace, oven, stove.
  • Owner perspectives: Generally positive about solid construction, comfortable motion, good space. Common issues are typical for older boats, like needing re-bedding for deck fittings (in general for older Hughes boats). One owner describes the Hughes 35 as an offshore boat.

Now I can proceed with generating the article based on these findings and the provided context.

Calculations from initial thought block:

  • SA/D Ratio (Standard): 16.23
  • SA/D Ratio (Tall Rig): 17.63
  • Ballast/Disp Ratio: 0.489 (~49%)
  • Disp/LWL Ratio (Standard): 280.49
  • Disp/LWL Ratio (Shoal Draft): 353.05

These ratios suggest a moderately heavy, stable cruiser-racer. The Ballast/Disp ratio is quite high, indicating good stiffness. The D/L ratio for the standard version is on the heavier side of moderate, suggesting a capable cruiser. The tall rig SA/D ratio nudges it more towards light-air performance.

I have enough information to generate the article.

Final check on constraints:

  • Do Not List Raw Data: Yes, I will interpret the ratios and weave in specs.
  • Grounding is Key: Yes, information comes from, builder article, and search results with citations.
  • No Images: Yes.
  • Conciseness: Will aim for this.
  • Use proper h2 headings: Yes.
  • No h1: Yes.
InfoView listings

Measurements

Construction & Hull

Construction Material
Fiberglass (Solid)
Hull Type
Monohull Sailboat
Keel Type
Fin
Rudder
1x Skeg-Hung
Ballast
5400 lbs
Displacement
11040 lbs
Water Capacity
25 gal
Fuel Capacity
20 gal

Engine

Engine Make
Universal
Engine Model
Atomic 4
Engine Type
Engine HP
30
Engine Count
1
Drive Type
Fuel Type
Gasoline
Hover over a measurement
IJPE FS LOALWL

Rig & Sails

Rig Type
Masthead Sloop
P (Main Luff)
37.8 ft
E (Main Foot)
10.3 ft
I (Foretriangle Height)
42.6 ft
J (Foretriangle Base)
14.5 ft
Forestay Length (est)
45 ft
Main Sail Area
194.67 sqft
Foretriangle Sail Area
308.85 sqft
Total Sail Area (Reported)
504 sqft
Total Sail Area (Calc)
503.52 sqft

Dimensions

LOA
35.5 ft
LWL
26 ft
Beam
10.33 ft
Draft
5.83 ft
Max Headroom
6.33 ft
Air Draft
50 ft

Calculations

Hull Speed
6.83 kn
Pounds per Inch Immersion
959.67
