Coronado 23 Information, Review, Specs

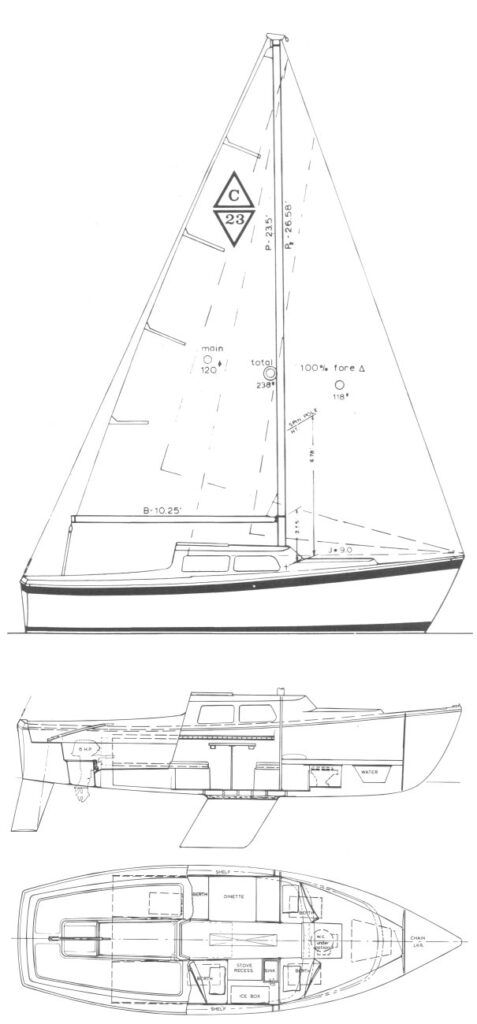

Boat drawing
Make
Model
Number Built
Production Year(s)
1969 - 1973

The Coronado 23 is a small cruiser-racer designed by William Crealock, produced by Coronado Yachts (a division of Whittaker Corporation, also owning Columbia Yachts) from 1969 to 1973. It was also marketed as the Sailcrafter 23. A keel/centerboard version was available in addition to the standard fin keel.

History and Design:

  • Designed by William Crealock.
  • Production from 1969-1973.
  • Coronado's manufacturing ethos focused on accessible fiberglass cruisers.
  • Variations: standard fin keel, keel/CB version. Also known as Sailcrafter 23. A later model, the Coronado 23-2, was a different design.

Sailing Performance and Handling:

  • Described as a "cruiser-racer".
  • Some sources indicate it's similar to the Columbia 22 but with a different deck and coach roof.

Accommodations and Layout:

  • Equipped with one cabin, a galley, and toilet facility.
  • Interior arrangement plans exist from 1968, and for the Mk II version from 1972.

Owner's Perspectives:

  • Owners often discuss common issues like leaky windows and cracks in the interior/cockpit.
  • Maintenance concerns include original deck fittings and proprietary Columbia parts.
  • There's a community of owners on forums, indicating continued interest in maintaining these classic vessels.

I have enough information to construct the article, keeping in mind the 23-foot length means I won't explicitly use the performance ratios, but rather describe performance qualitatively.

I will structure the article according to the user's instructions.

InfoView listings

Measurements

Construction & Hull

Construction Material
Fiberglass (Solid)
Hull Type
Monohull Sailboat
Keel Type
Fin
Rudder
1x Spade
Ballast
1100 lbs
Displacement
2300 lbs
Water Capacity
-
Fuel Capacity
-

Engine

Engine Make
Engine Model
Engine Type
Engine HP
Engine Count
1
Drive Type
Fuel Type
Hover over a measurement
IJPE FS LOALWL

Rig & Sails

Rig Type
Masthead Sloop
P (Main Luff)
23.5 ft
E (Main Foot)
10.25 ft
I (Foretriangle Height)
26.58 ft
J (Foretriangle Base)
9 ft
Forestay Length (est)
28.06 ft
Main Sail Area
120.44 sqft
Foretriangle Sail Area
119.61 sqft
Total Sail Area (Reported)
237 sqft
Total Sail Area (Calc)
240.05 sqft

Dimensions

LOA
22.58 ft
LWL
20.08 ft
Beam
7.75 ft
Draft
3.17 ft
Max Headroom
-
Air Draft
-

Calculations

Hull Speed
6 kn
Pounds per Inch Immersion
556.05
