Columbia 43 Miii Information, Review, Specs

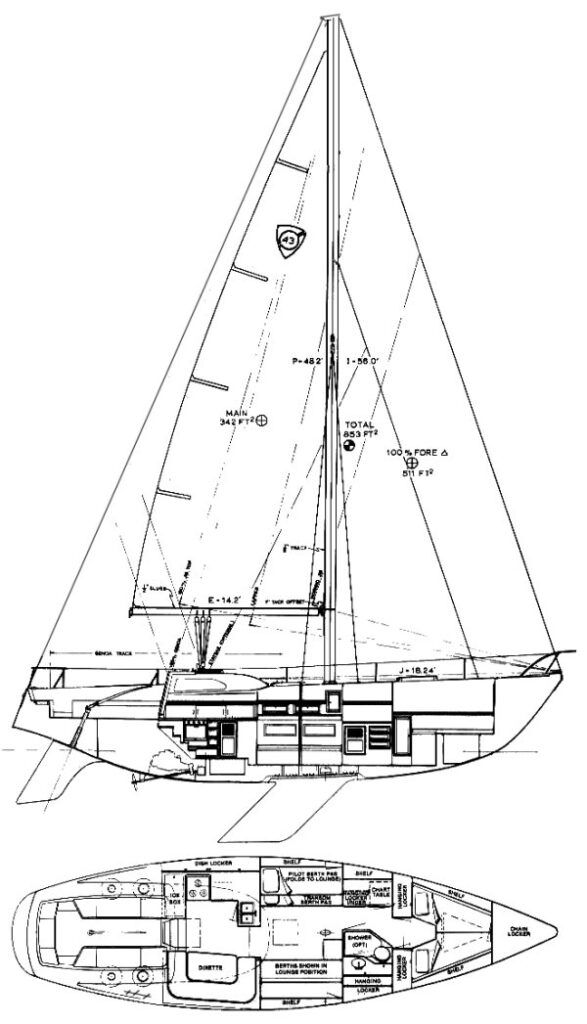

Boat drawing
Make
Columbia
Model
43 Miii
Number Built
96
Production Year(s)
1973 - ??

The Columbia 43 Miii is a notable fiberglass masthead sloop designed by the esteemed naval architect William Tripp Jr. Built by Columbia Yachts, a pioneering force in the American fiberglass sailboat industry, the Columbia 43 Miii emerged as a performance-oriented cruiser, offering a blend of spirited sailing characteristics and comfortable accommodations for its era. Its reputation quickly established it as a vessel capable of both racing prowess and enjoyable cruising.

History and Design

The Columbia 43 Miii was a specific iteration of the Columbia 43, with production concluding in 1974 after 152 units were built. While there were earlier versions of the Columbia 43, possibly including variations with a fin keel or a centerboard, the MkIII largely retained the same deck layout, interior, and construction methods as its predecessors, notably incorporating a lead keel.

Sailing Performance and Handling

The Displacement to Length ratio (D/L) of approximately 282 positions the Columbia 43 Miii in the category of a moderate displacement cruiser. This suggests a vessel with a robust build and good carrying capacity, offering a comfortable ride without sacrificing too much speed. Owners and observers have anecdotally described the Columbia 43 as having been a "hot racing yacht" in its time, transitioning gracefully into a "comfortable, fast cruiser" for contemporary sailors. Its aesthetic appeal has even led some to consider its lines to be "sailboat perfection."

Accommodations and Layout

Owner's Perspectives

InfoView listings

Measurements

Construction & Hull

Construction Material
Fiberglass (Solid)
Hull Type
Monohull Sailboat
Keel Type
Fin
Rudder
1x Skeg-Hung
Ballast
10300 lbs (Lead)
Displacement
22000 lbs
Water Capacity
50 gal
Fuel Capacity
50 gal

Engine

Engine Make
Perkins
Engine Model
Engine Type
Engine HP
50
Engine Count
1
Drive Type
Fuel Type
Diesel
Hover over a measurement
IJPE FS LOALWL

Rig & Sails

Rig Type
Masthead Sloop
P (Main Luff)
48.2 ft
E (Main Foot)
14.2 ft
I (Foretriangle Height)
56 ft
J (Foretriangle Base)
18.24 ft
Forestay Length (est)
58.9 ft
Main Sail Area
342.22 sqft
Foretriangle Sail Area
510.72 sqft
Total Sail Area (Reported)
853 sqft
Total Sail Area (Calc)
852.94 sqft

Dimensions

LOA
43.75 ft
LWL
32.67 ft
Beam
12.33 ft
Draft
7 ft
Max Headroom
-
Air Draft
-

Calculations

Hull Speed
7.66 kn
Pounds per Inch Immersion
1
