C&C 37/40 R Information, Review, Specs

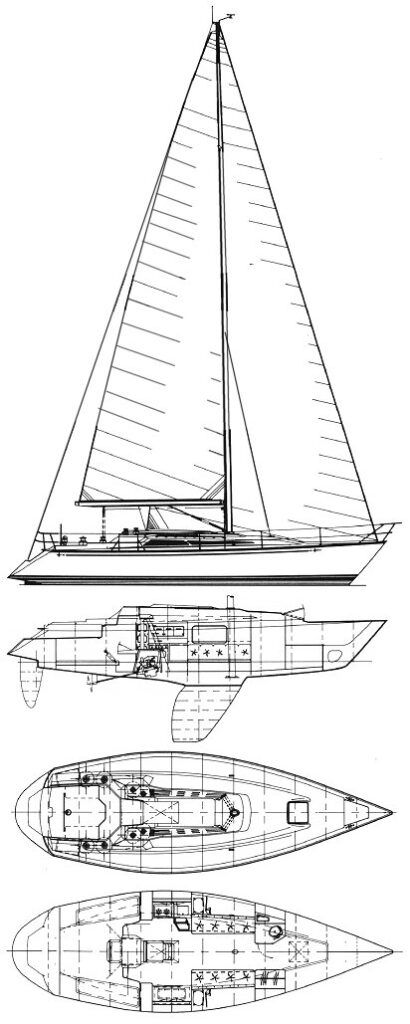

Boat drawing
Make
C&C
Model
37/40 R
Number Built
25
Production Year(s)
1988 - 1990

The C&C 37/40 R is a distinguished performance-oriented sailboat designed explicitly for racing, standing apart as a lighter, more spartan variant within C&C Yachts' post-1988 37-foot series. Launched by the renowned Canadian builder, C&C Yachts, between 1988 and 1990, this model embodies the company's legacy of crafting fast, sleek, and solidly constructed vessels. Designed by Robert W. Ball, a key in-house naval architect for C&C, the 37/40 R was engineered to excel on the racecourse, particularly under the IMS (International Measurement System) handicap rules of its era.

InfoView listings

History and Design

The C&C 37/40 R emerged in 1988 as a specialized iteration of the broader C&C 37/40 platform, which also included cruising-oriented versions like the 37/40+ and the 37/40 XL. Its creation reflects C&C Yachts' enduring commitment to innovation and high-performance design, a hallmark of the company since its founding in 1969. During this period, C&C maintained a strong reputation for producing "performance cruisers," yachts capable of both competitive racing and comfortable cruising. However, the 37/40 R diverged by prioritizing outright speed, featuring a somewhat lighter hull and a more minimalist interior compared to its cruising siblings. A defining characteristic of the "R" model is its taller, three-spreader tapered mast, complemented by running backstays and check stays, optimized for maximizing sail area and control under racing conditions. This model was built with a deep-draft fin keel, extending just over eight feet, further enhancing its upwind performance and stability. Production of the C&C 37/40 R ran for a brief period, concluding in 1990, with approximately 25 units built.

Sailing Performance and Handling

The C&C 37/40 R's design specifications translate directly into its spirited sailing performance. With a sail area to displacement ratio of approximately 20.96, the yacht is well-powered and capable of strong performance, particularly in lighter air conditions, where its ample sail plan can efficiently propel its form. Her ballast to displacement ratio, around 48.3%, indicates a relatively stiff boat, allowing it to stand up to significant wind pressure without excessive heeling, a crucial attribute for competitive racing. The displacement to length ratio, at approximately 207.2, positions the 37/40 R as a performance-oriented vessel, leaning towards the lighter end of the spectrum for its size, contributing to its speed and responsiveness. Anecdotal accounts from the sailing community often highlight the C&C 37/40 R as a notably fast boat, with its race-focused design proving highly effective on the course. Owners of C&C 37/40 series boats, including the R model, generally describe them as comfortable to sail, maintaining C&C's reputation for well-balanced yachts.

Accommodations and Layout

Befitting its designation as a racing model, the interior of the C&C 37/40 R is characterized by a "spartan" and less plush layout, prioritizing functionality and weight reduction over extensive cruising amenities. While specific detailed diagrams for the R model's interior are less common than for its cruising counterparts, it would typically feature a functional arrangement conducive to offshore racing needs. This would include essential provisions like a V-berth forward, a main salon area that might double as sleeping quarters, a basic galley for meal preparation, and an enclosed head. Storage solutions would be present but likely minimized to reduce weight. The overall finish would be robust and practical, consistent with a performance-oriented yacht designed to be competitive. The boat is equipped with a 30-gallon fresh water capacity and a 20-gallon fuel tank, suitable for its intended racing and occasional cruising use.

Measurements

Construction & Hull

Construction Material
Fiberglass (Solid)
Hull Type
Monohull Sailboat
Keel Type
Fin
Rudder
1x Spade
Ballast
7200 lbs (Lead)
Displacement
14900 lbs
Water Capacity
30 gal
Fuel Capacity
20 gal

Engine

Engine Make
Universal-Atomic
Engine Model
M35
Engine Type
Engine HP
Engine Count
1
Drive Type
Fuel Type
Diesel
Hover over a measurement
IJPE FS LOALWL

Rig & Sails

Rig Type
Masthead Sloop
P (Main Luff)
48.42 ft
E (Main Foot)
15.58 ft
I (Foretriangle Height)
54 ft
J (Foretriangle Base)
15.58 ft
Forestay Length (est)
56.2 ft
Main Sail Area
377.19 sqft
Foretriangle Sail Area
420.66 sqft
Total Sail Area (Reported)
798 sqft
Total Sail Area (Calc)
797.85 sqft

Dimensions

LOA
39.5 ft
LWL
31.83 ft
Beam
12.58 ft
Draft
8.16 ft
Max Headroom
-
Air Draft
-

Calculations

Hull Speed
7.56 kn
Pounds per Inch Immersion
1
