Catalac 9 M Information, Review, Specs

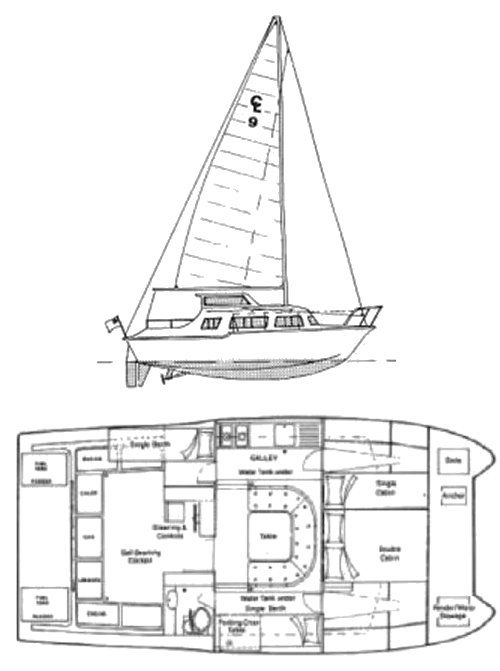

Boat drawing
Make
Catalac
Model
9 M
Number Built
250
Production Year(s)
1975 - ??

The search results provide a good amount of information. I can now proceed to write the article.

Key findings from search results:

  • Designer: John Winterbotham of MG Duff LTD commissioned by Tom Lack (Catalac founder).
  • Purpose/Reputation: Strongly built, practical cruising catamaran, comfortable family cruiser, safe, stable, spacious. Sometimes considered a "motor sailor" due to boxy design but sails well.
  • Variations: Two main variants, Mk1 and Mk2. Mk1 had a round porthole for the heads and port aft cabin.
  • Production: First and most popular Catalac, over 250 built, starting in 1975. Also known as Catalac 30. Shortened version became the Catalac 8M, and a revived version in the 1990s was the Catalac 900.
  • Sailing Performance: Sails well, doesn't heel. Better for close-hauled in light winds with a jib. Competent, versatile. May have some windward difficulty. More comfortable and solid than some peers. Generally not known for cutting-edge performance, but for stability and comfort.
  • Handling: Dockside maneuverability is good with twin diesels.
  • Accommodations/Layout: Known for good interior layout and generous interior room. Owners praise the space. A "blank canvas" for refits. Interiors can be dated. Molded trunk cabin with good ventilation. Catamarans have more interior room than a monohull 50% larger, larger galleys, full-size to king-sized beds.
  • Owner's Perspectives: Enthusiastic owner community. Strengths: Robust construction, stability, comfortable motion, spacious interior. Weaknesses/Issues: Original deck fittings might leak (not explicitly stated for 9M but common in older boats), dated interiors. Some concern about windward performance. Low clearance and weak Airex ribs mentioned as a common concern in stock Catalacs, though it's unclear if this specifically applies to the 9M.

I will make sure to cite correctly and interpret the data. I will avoid using ratios for performance since it's a catamaran under 30 feet.

I'm ready to generate the article.

InfoView listings

Measurements

Construction & Hull

Construction Material
Fiberglass (Solid)
Hull Type
Catamaran Sailboat
Keel Type
Multihull
Ballast
-
Displacement
8000 lbs
Water Capacity
70 gal
Fuel Capacity
24 gal

Engine

Engine Make
Engine Model
Engine Type
Engine HP
Engine Count
1
Drive Type
Fuel Type
Hover over a measurement
IJPE FS LOALWL

Rig & Sails

Rig Type
Masthead Sloop
P (Main Luff)
-
E (Main Foot)
-
I (Foretriangle Height)
-
J (Foretriangle Base)
-
Forestay Length (est)
-
Main Sail Area
-
Foretriangle Sail Area
-
Total Sail Area (Reported)
420 sqft
Total Sail Area (Calc)
-

Dimensions

LOA
29.25 ft
LWL
25.92 ft
Beam
13.75 ft
Draft
2.5 ft
Max Headroom
-
Air Draft
-

Calculations

Hull Speed
6.82 kn
Pounds per Inch Immersion
