US 30 Information, Review, Specs

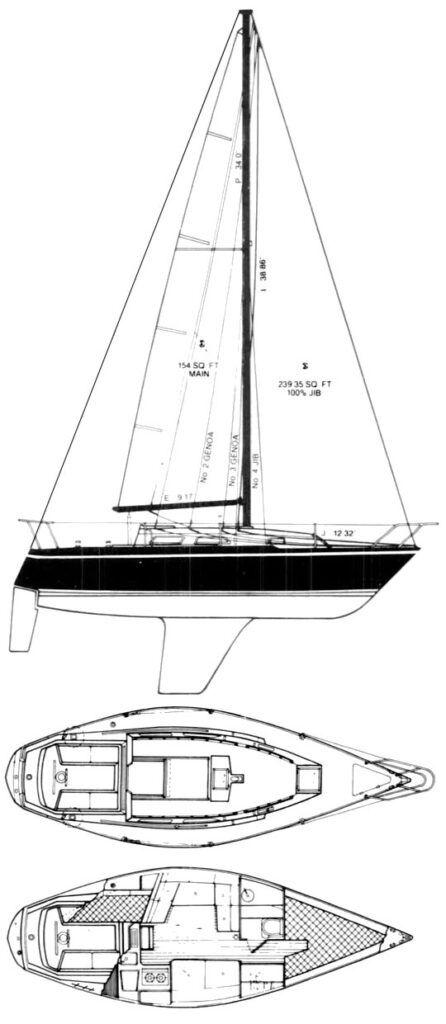

Boat drawing
Make
Model
Number Built
Production Year(s)
1979 - 1983

The previous searches have helped to flesh out the introduction and history. I now know the designers, the builder, and the production years, as well as the context of Bayliner's sailboat division and their practice of re-using tooling. The note about the hull being based on an earlier Peterson 1/2 ton design is also valuable. I've also confirmed the shoal draft option.

However, I am still lacking substantial, specific information for:

  • Sailing Performance and Handling: While I have the ratios, anecdotal descriptions of how the US 30 specifically handles in different conditions are scarce. The general search results for "sailboat handling characteristics" are too generic or refer to other 30-foot boats.
  • Accommodations and Layout: I only have the max headroom. Detailed descriptions of the interior arrangement (V-berth, salon, galley, head, etc.) are still missing. The "Corinthian" results are for cruise ships or larger motor yachts, not this sailboat.
  • Owner's Perspectives: Owner reviews, common problems, strengths, and weaknesses specifically for the US 30 or Corinthian 30 are still elusive. Many forum results are for the Catalina 30, which I need to avoid.

I need to perform more targeted searches focusing on actual sailing reviews, interior walkthroughs, or owner discussions specifically for the "US 30" or "Corinthian 30" sailboat model.

InfoView listings

Measurements

Construction & Hull

Construction Material
Fiberglass (Solid)
Hull Type
Monohull Sailboat
Keel Type
Fin
Rudder
1x Spade
Ballast
2850 lbs
Displacement
7000 lbs
Water Capacity
29 gal
Fuel Capacity
20 gal

Engine

Engine Make
Volvo Penta
Engine Model
Engine Type
Engine HP
13
Engine Count
1
Drive Type
Fuel Type
Diesel
Hover over a measurement
IJPE FS LOALWL

Rig & Sails

Rig Type
Masthead Sloop
P (Main Luff)
34 ft
E (Main Foot)
9.17 ft
I (Foretriangle Height)
38.86 ft
J (Foretriangle Base)
12.32 ft
Forestay Length (est)
40.77 ft
Main Sail Area
155.89 sqft
Foretriangle Sail Area
239.38 sqft
Total Sail Area (Reported)
381 sqft
Total Sail Area (Calc)
395.27 sqft

Dimensions

LOA
29.92 ft
LWL
25 ft
Beam
10.25 ft
Draft
5.58 ft
Max Headroom
6.17 ft
Air Draft
41.83 ft

Calculations

Hull Speed
6.7 kn
Pounds per Inch Immersion
915.61
