Aloa 23 R Information, Review, Specs

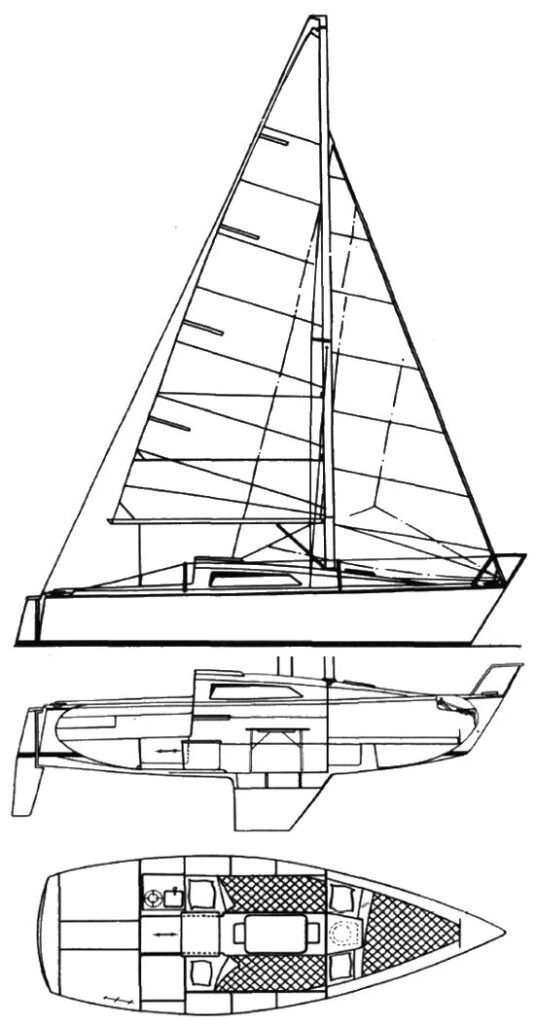

Boat drawing
Make
Model
Number Built
100
Production Year(s)
1978 - 1980

The Aloa 23 R is a compact and engaging monohull sailboat, embodying the French builder Aloa Marine's dedication to accessible and well-designed fiberglass yachts. Produced for a brief period between 1978 and 1980, this 22-foot fractional sloop was conceived by the renowned naval architect Jacques Fauroux. Positioned as a more modern and potentially faster evolution of the original Aloa 23, the 'R' model likely targeted sailors seeking a nimble weekender or coastal cruiser with a touch more performance than its predecessor.

InfoView listings

Aloa Marine, originally established as SEB Marine in Mandelieu, France, built a reputation for its robust fiberglass construction methods. The company consistently collaborated with esteemed naval architects to produce a range of practical and seaworthy vessels. The Aloa 23 R, a product of this era, reflects this manufacturing ethos, utilizing solid fiberglass for both its hull and deck.

Designed by Jacques Fauroux, the Aloa 23 R emerged as a distinct model from the earlier Aloa 23, which was designed by J.M. L'Hermenier (and also sometimes credited to Fauroux). Fauroux, known for his work on performance-oriented cruisers and "very fast cruising yachts," likely infused the Aloa 23 R with characteristics aimed at enhancing its sailing prowess. The "R" designation itself suggests a refinement, signifying a more contemporary and potentially speedier iteration compared to the standard Aloa 23.

Sailing Performance and Handling

While the Aloa 23 R is a smaller vessel, at just over 22 feet in length overall, its design by Jacques Fauroux suggests a focus on spirited performance. Anecdotal evidence from owners indicates that the 'R' model was perceived as both more modern and faster than the standard Aloa 23. Its fractional sloop rig, coupled with a fin keel and transom-hung rudder, implies a design intended for responsiveness and agility under sail. With a reported total sail area of 274 square feet, the Aloa 23 R likely offers lively performance in a variety of conditions, making it an enjoyable boat for day sailing and coastal excursions.

Accommodations and Layout

Given its compact length overall of 22.31 feet and a beam of 8.14 feet, the Aloa 23 R provides essential accommodations typically found in small cruisers of its era. While specific details on the interior layout are not extensively documented in available public information, such vessels usually feature a V-berth forward, a compact galley area, and a basic salon with settees that may double as berths. Storage would be modest, suitable for short trips. The use of fiberglass for the hull and deck, a hallmark of Aloa Marine, would have provided a sturdy, if sometimes spartan, interior finish, likely complemented by wood trim to add warmth and character.

Measurements

Construction & Hull

Construction Material
Fiberglass (Solid)
Hull Type
Monohull Sailboat
Keel Type
Fin
Rudder
1x Transom-Hung
Ballast
794 lbs
Displacement
2646 lbs
Water Capacity
-
Fuel Capacity
-

Engine

Engine Make
Engine Model
Engine Type
Engine HP
Engine Count
1
Drive Type
Fuel Type
Hover over a measurement
IJPE FS LOALWL

Rig & Sails

Rig Type
Fractional Sloop
P (Main Luff)
-
E (Main Foot)
-
I (Foretriangle Height)
-
J (Foretriangle Base)
-
Forestay Length (est)
-
Main Sail Area
-
Foretriangle Sail Area
-
Total Sail Area (Reported)
274 sqft
Total Sail Area (Calc)
-

Dimensions

LOA
22.31 ft
LWL
19.68 ft
Beam
8.14 ft
Draft
3.94 ft
Max Headroom
-
Air Draft
-

Calculations

Hull Speed
5.94 kn
Pounds per Inch Immersion
572.4
